Learning to Write Patterns

Pixelblaze allows you to write your own patterns. You can view and edit the code for every pattern on your Pixelblaze.

The Pixelblaze language is a simplified subset of JavaScript with a robust library of LED functions included.

Much of the information on this page was written by Jason Coon of Evil Genius Labs. They make some of the most beautiful LED displays you can use with Pixelblaze, including the Fibonacci series of spiral displays.

Writing Your Own Patterns: Part 1

The Pixelblaze controller inside your Lux Lavalier allows you to write your own patterns! In fact, you can view and edit the code for every pattern included with it.

Let's get started writing your first pattern.

If you haven't already, connect your Lux Lavalier to your wi-fi, and open its web page: Wi-Fi Setup Instructions
In the Pixelblaze web app, click the Edit tab at the top of the page.
Delete any code in the New Expression editor.
Type (or copy and paste) the following code into the editor:
```
export function render() {
  rgb(1, 0, 0)
}
```
All of the pixels (LEDs) should turn red.
Change the second line of the code to rgb(0, 1, 0) and all of the pixels should turn green.
Change it to rgb(0, 0, 1) and they'll turn blue.
Change it to rgb(.5, 0, .5) and they'll turn purple.
Change it to rgb(1, 1, 1) and they'll turn white.
Experiment with making different colors by mixing red, green, and blue with different values between 0 and 1. The expression editor will warn you if there are any errors.

Explanation time!

The `render` Function

The render function gets called repeatedly, once for each pixel, in order and then wraps from the end back to the beginning. The Lux Lavalier has 64 pixels, so it gets called 64 times. Inside the render function above, we're calling another function, that is included with the Pixelblaze, called rgb.

RGB Colors and the `rgb` function

Each pixel internally has three LEDs: Red, Green, and Blue. We can directly control those tiny little individual LEDs inside each pixel with the rgb function. The numbers passed to the function should be between 0.0 and 1.0. A value of 0 turns that LED off completely. A value of 1 turns that LED on completely. Any number in between turns it on a percentage. A value of 0.1 will turn it on at 10% brightness.

The Pixelblaze automatically scales this down with the global brightness you've set with the brightness slider in the upper-right corner of the page.

You may have found that it can be a little difficult to get just the right color by mixing different values for red, green, and blue. So let's explore a different way of handling colors: HSV!

HSV Colors and the `hsv` function

We can also control the pixel colors by using the hsv function.

Change the second line of the code to hsv(0, 1, 1) and all of the pixels should turn red.

Here's the complete code:
```
export function render() {
  hsv(0, 1, 1)
}
```
Change it to hsv(.33, 1, 1) and they'll turn green.
Change it to hsv(.66, 1, 1) and they'll turn blue.
Change it to hsv(1, 1, 1) and they'll turn back to red.
Change it to hsv(1, .99, 1) and they'll turn pink.

HSV stands for Hue, Saturation, and Value.

The first number (hue) controls the color or shade from the rainbow color wheel:

Notice that at 0 at the top it's red. As hue increases, it rotates clockwise so at .25 it's one quarter of the way around. At .33 or a third it's at green, then at .66 or two thirds (2/3) it's at blue, then it circles back towards red.

Using the color wheel, change the first number in the hsv function and it should be much easier to set the LEDs to whatever color you want.

The second number (saturation) controls the 'whiteness' of the color:

A saturation of zero will be white, regardless of the hue. A saturation of 1 is fully saturated, the strongest possible color of the hue. In between are more pastel colors.

The third and final number (value) controls the brightness (or inversely blackness) of the color:

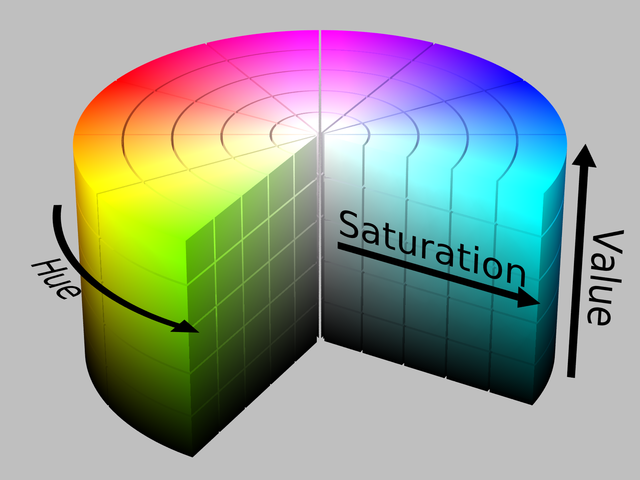

HSV color solid cylinder saturation gray

A value of zero will be black, regardless of the hue or saturation. A value of 1 will be fully bright. In between are darker colors.

Experiment with using different combinations of hue, saturation, and value to create different colors.

Changing every pixel to be the same color is neat, but what if we want each pixel to be a different color?

The `index` variable

We can use the pixel index to make each LED a different color.

Change the first line, adding index in between the parentheses of the render function:
```
export function render(index) {
```
Change the second line to hsv(index / pixelCount, 1, 1)

Here's the complete code:
```
export function render(index) {
  hsv(index / pixelCount, 1, 1)
}
```

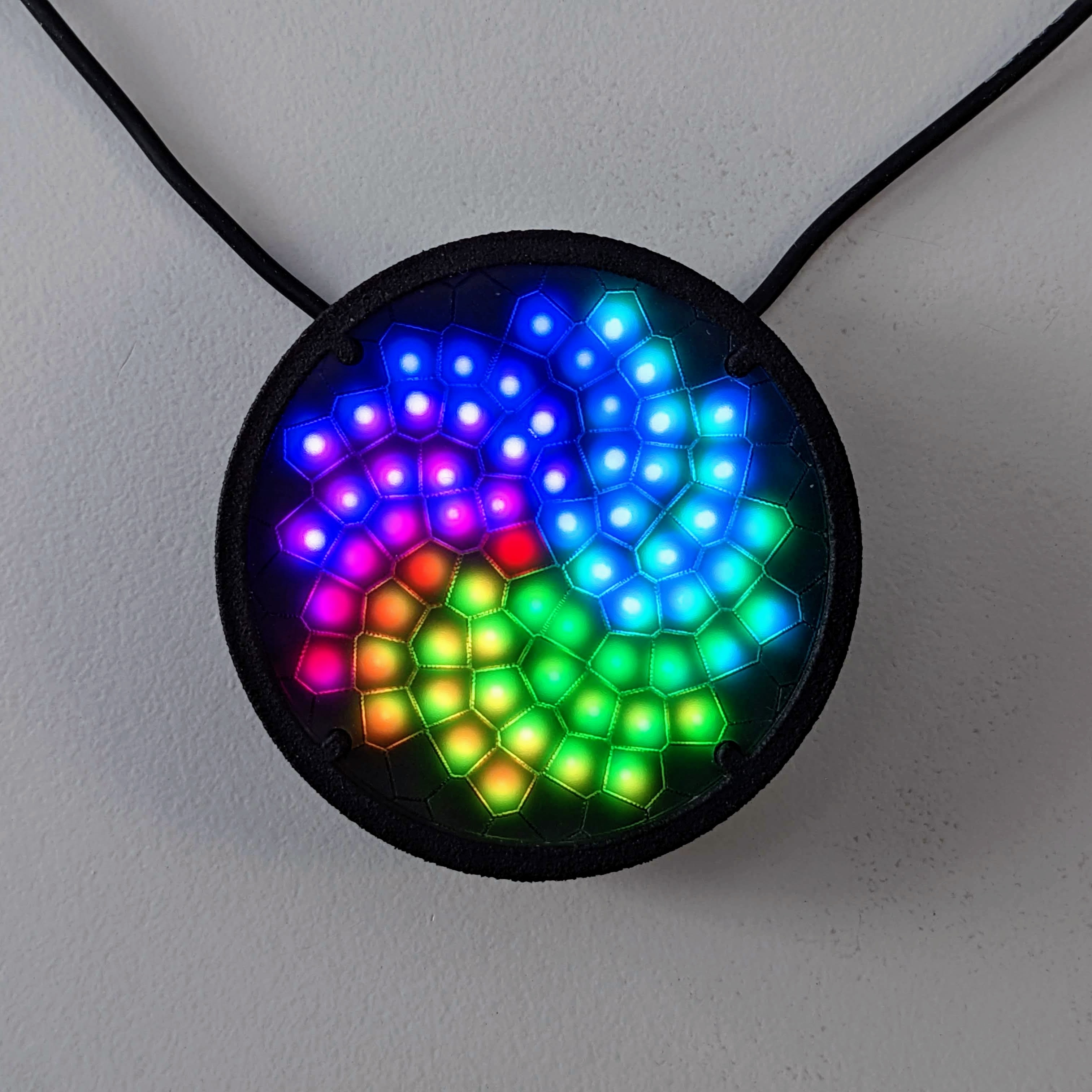

Congratulations, you made a round rainbow!

The render function includes index, which is the index of the current pixel being rendered. Lux Lavalier has 64 pixels. The very first time render is called, index is set to 0. The next time, index is 1, etc, until index is 63. Then it wraps back to the beginning so that the next time it's called it starts back over at 0.

The `pixelCount` variable

On the second line of code, we used pixelCount, which is a special global variable that Pixelblaze automatically sets for us to the total number of pixels. We used it to convert the index which ranges from 0 to 63, to hue which ranges from 0 to 1. The first time render is called, index is 0, which divided by any number is still 0. The second time, index is 1, and 1 / 64 = 0.015625. When used as a hue, that gives a color very close to red, but slightly rotated around the color wheel towards orange. For pixel 21, we're about one-third of the way through the pixels and the color wheel: 21 / 64 = 0.328125 which, when used as a hue, gives a color close to green.

So now we have changed each pixel to be a different color, and made rainbows, but what about animation?

Animation

We can use time to make the pixel colors change!

Replace the code with the following:

export function render(index) {
  t = time(.1)
  i = index / pixelCount
  h = i + t
  hsv(h, 1, 1)
}

And now the rainbow moves!

Try different values in the time function on the second line. You should find that 1 makes it move extremely slowly, taking over a minute to make a full rotation, while 0.005 is very fast. With low enough numbers for time, it will rotate so fast that it looks white!

Note that we've reorganized the code a bit:

We added a new variable t and set it by calling the time function. The t variable value will now slowly change over time.
We added a new variable i and set it to index / pixelCount, which is exactly what we were doing before: make each pixel have a unique hue, according to its index.
We added a new variable h and set it by adding i and t, so now the hue for each pixel changes over time.
Then we call hsv, passing it h for the hue.

The `time` function

The time function returns a value between 0 and 1 that loops over and over. The speed it loops is controlled by the value passed to it. A value of 1 will loop about every 65 seconds. A value of .1 will loop about every 6.5 seconds. When added to a hue, this rotates the color around the hue color wheel. Since we add that to each pixel's fixed hue (index / pixelCount), they all rotate at the same speed.

Note that Pixelblaze automatically handles values for hue larger than 1, wrapping it around to the other side of the color wheel. So a hue of 1.33 is the same green as 0.33.

XY Mapping and the `render2D` function

What if we want to use some other way of drawing patterns, other than index? How would we make a vertical or horizontal rainbow?

Replace the code with the following:

export function render2D(index, x, y) {
  hsv(x, 1, 1)
}

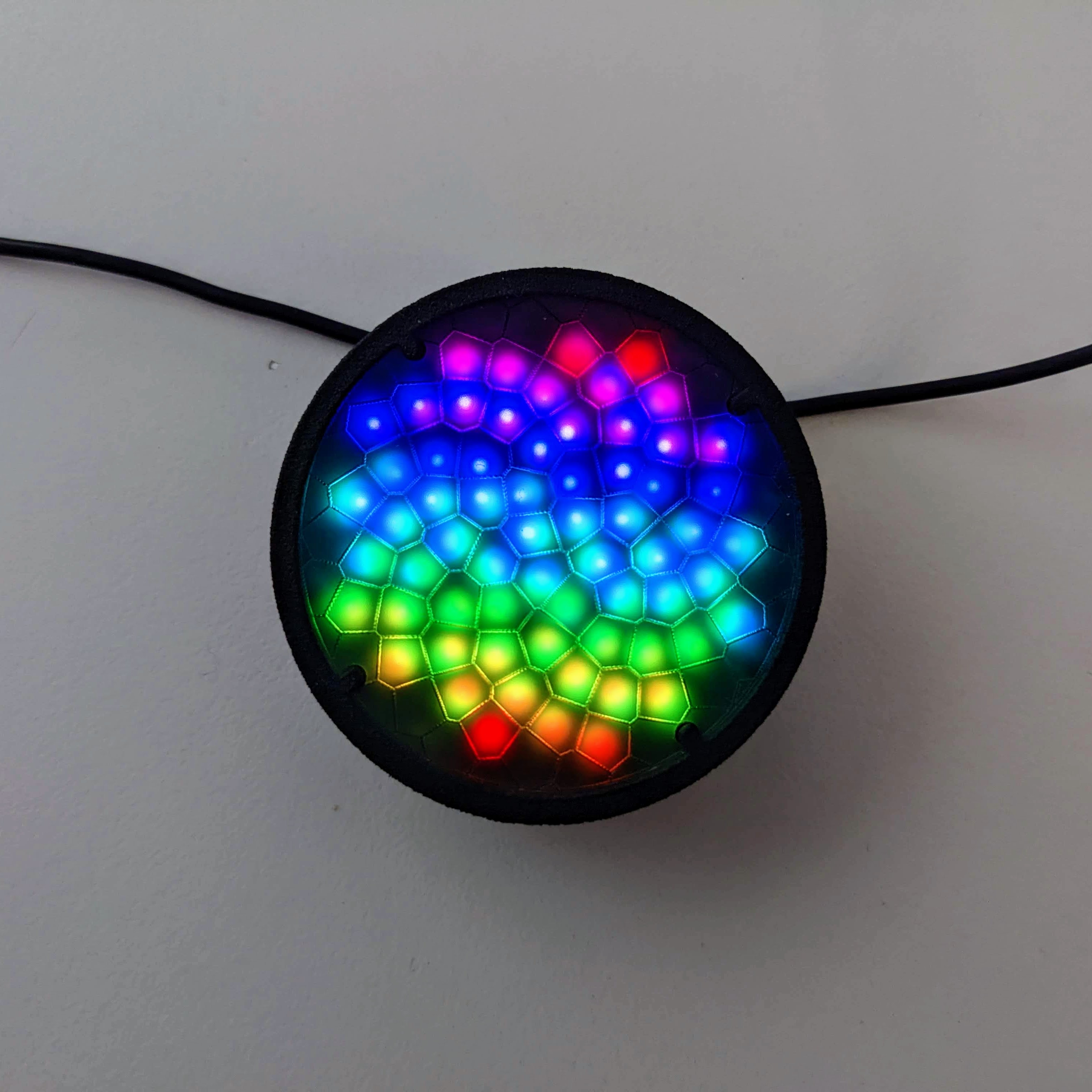

You should now see a horizontal rainbow!

Change the hue (the first parameter inside the hsv function) from x to y and it'll change to vertical.

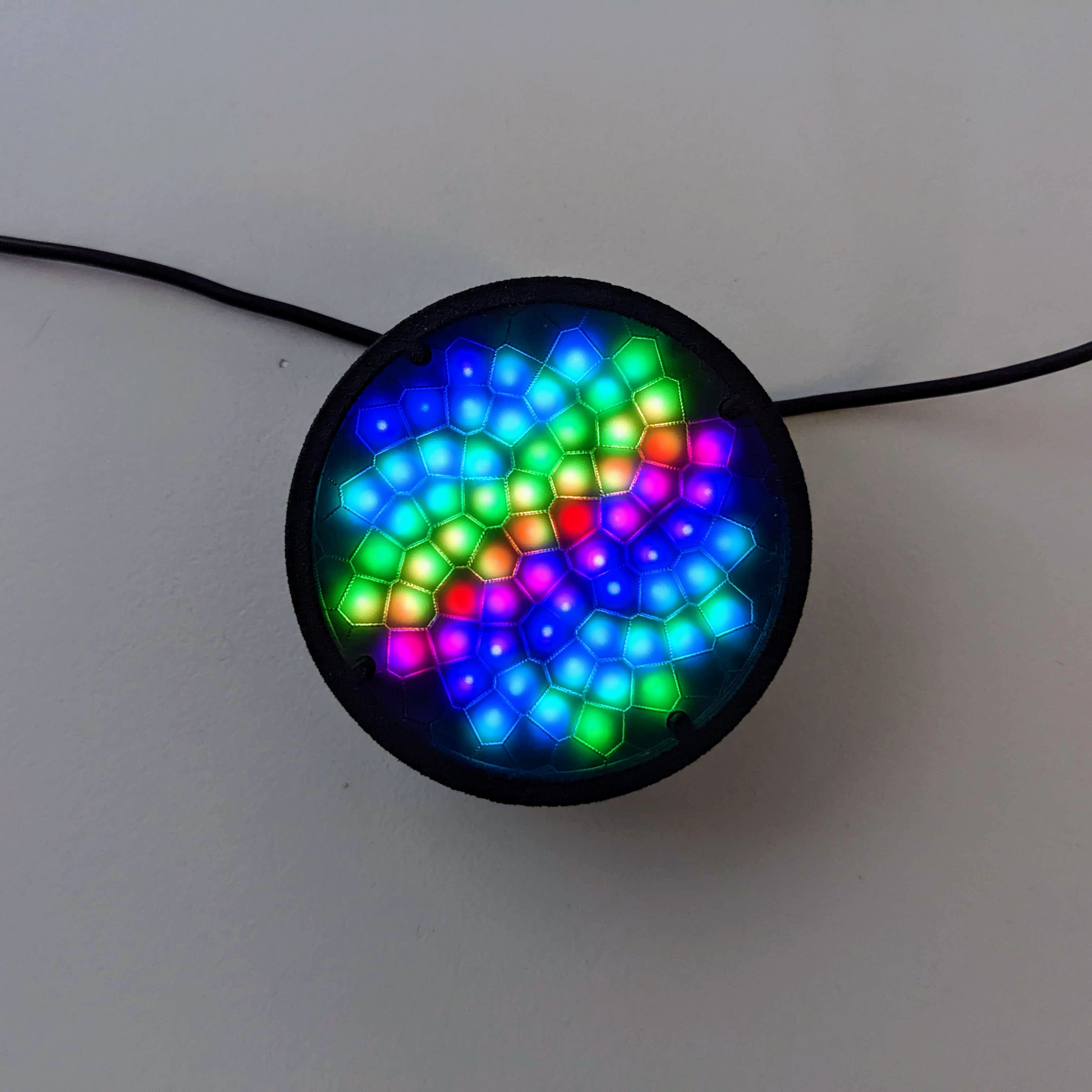

Change it to x + y and it'll be diagonal!

Notice that we changed from using the render function to the render2D function. In addition to the index parameter, it also includes x and y. These parameters range from 0 to 1, and indicate the current pixel's two dimensional position in the display, with (0,0) in the top left corner, and (1,1) in the bottom right.

We can animate these two dimensional rainbows the same way we did before, with time:

hsv(x + time(.1), 1, 1)

should give you a rainbow that scrolls from left to right:

To make it change direction, subtract instead of adding time:

hsv(x - time(.1), 1, 1)

To make it scroll vertically, change x to y:

hsv(y + time(.1), 1, 1)

Diagonal:

hsv(x + y + time(.1), 1, 1)

What if we want to make it rotate, expand, or contract? For that, we need some basic trigonometry! Wait, where are you going? Come back, I promise it's not that bad!

Radius

Replace the code with the following:

export function render2D(index, x, y) {
  h = hypot(x, y)
  hsv(h, 1, 1)
}

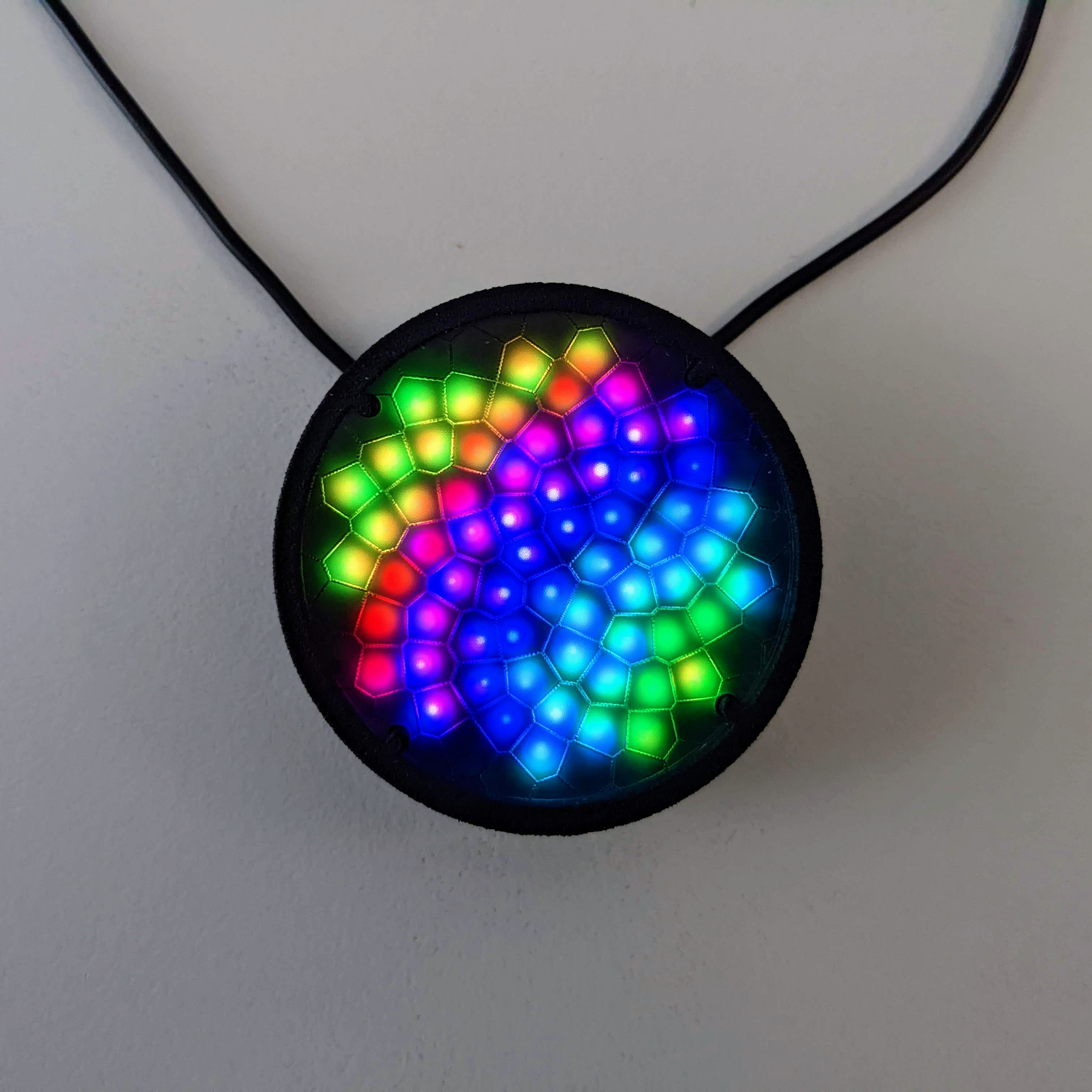

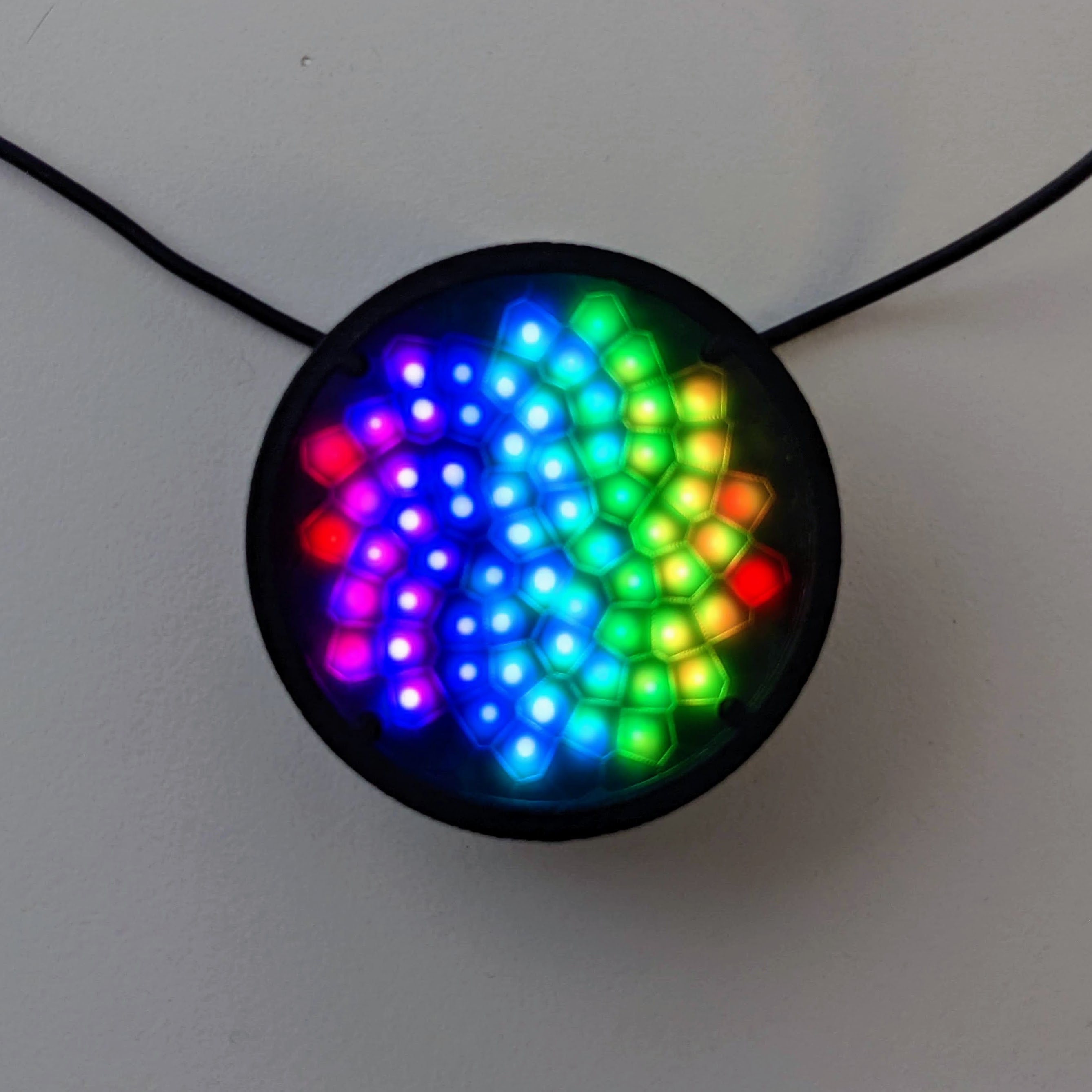

You should see semi-circular bands of rainbow!

The hypot function calculates the radius of the current point, or the distance of the point (x,y) from the origin (0,0) (the upper-left corner). If we want the origin in the center of the display, we change the second line to:

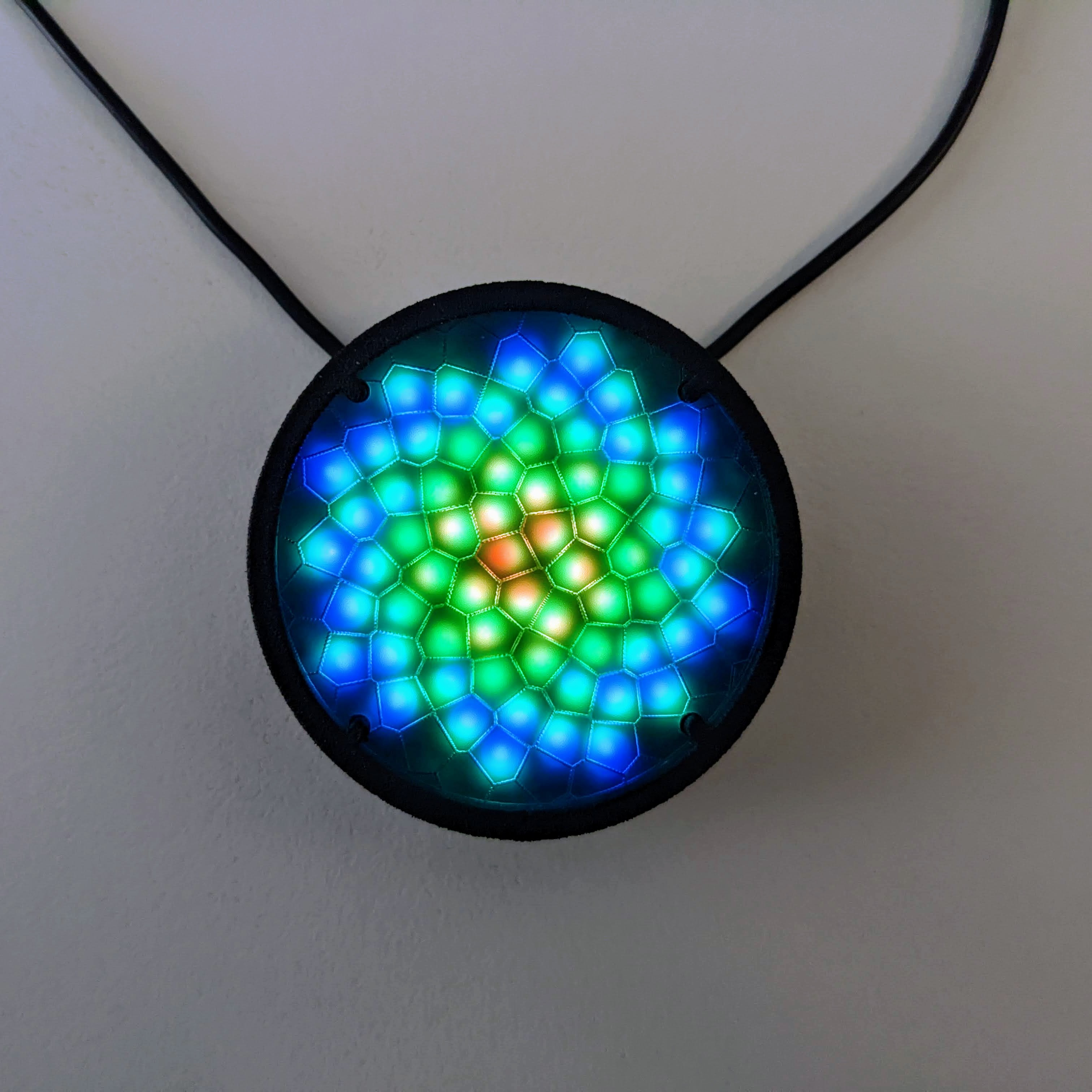

h = hypot(x - .5, y - .5)

Notice we're only getting half of the rainbow, from red to yellow, green, and blue? That's because the radius is only half of the circle. Multiply by 2 to get the full circular rainbow:

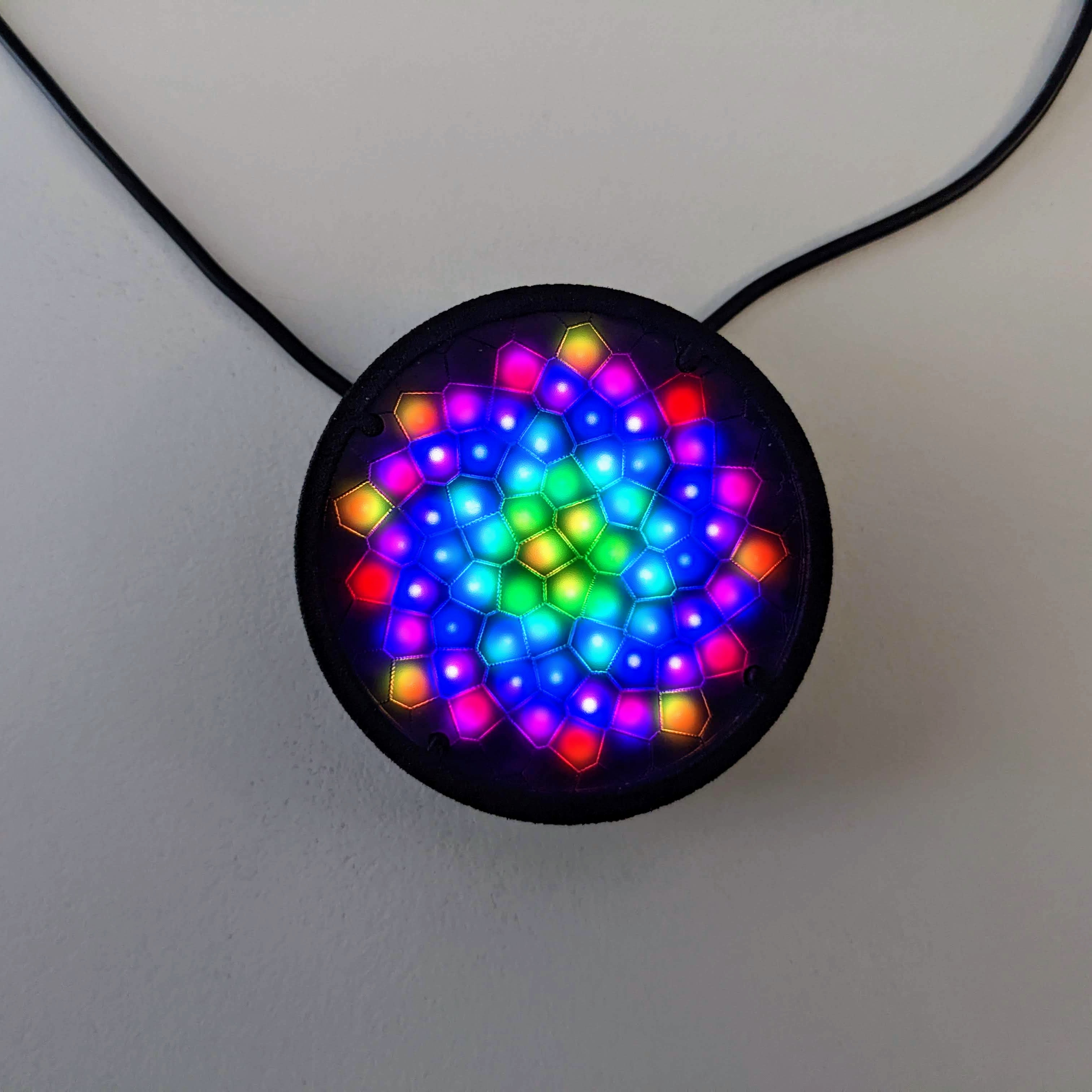

h = hypot(x - .5, y - .5) * 2

Make it move by adding time:

export function render2D(index, x, y) {
  t = time(.1)
  h = hypot(x - .5, y - .5) * 2 + t
  hsv(h, 1, 1)
}

Flip the direction and make it move outward by subtracting time:

h = hypot(x - .5, y - .5) * 2 - t

Experiment by changing any of the numbers in the code with different values:

Changing the x and y offsets from .5 will change the center of the circle.
Changing the scale from 2 will make the individual color bands larger or smaller.
Changing the time offset from negative to positive will change the direction of the movement (expanding or contracting, inward or outward)
Remember that changing the time from .1 will make it move slower or faster.

Angle

Replace the code with the following:

export function render2D(index, x, y) {
  radians = atan2(y, x)
  degrees = radians / PI / 2
  h = degrees
  hsv(h, 1, 1)
}

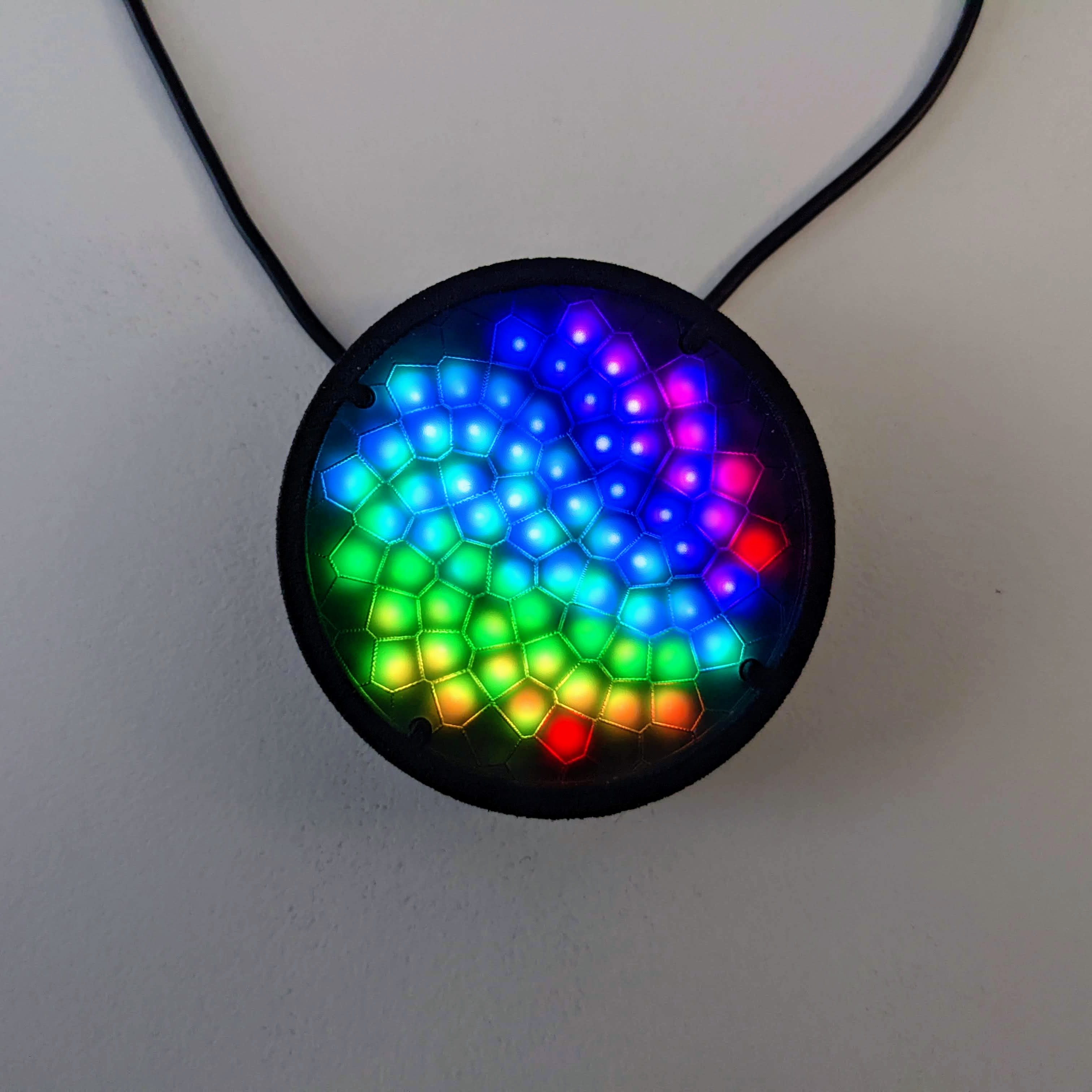

And you'll see a quarter of a circular rainbow.

The atan2 function on line 2 returns the angle (in radians) between the positive x axis and the line to the point (x, y).

Line 2 converts the radians to degrees, ranging from 0 to 1 (instead of 0 to 360).

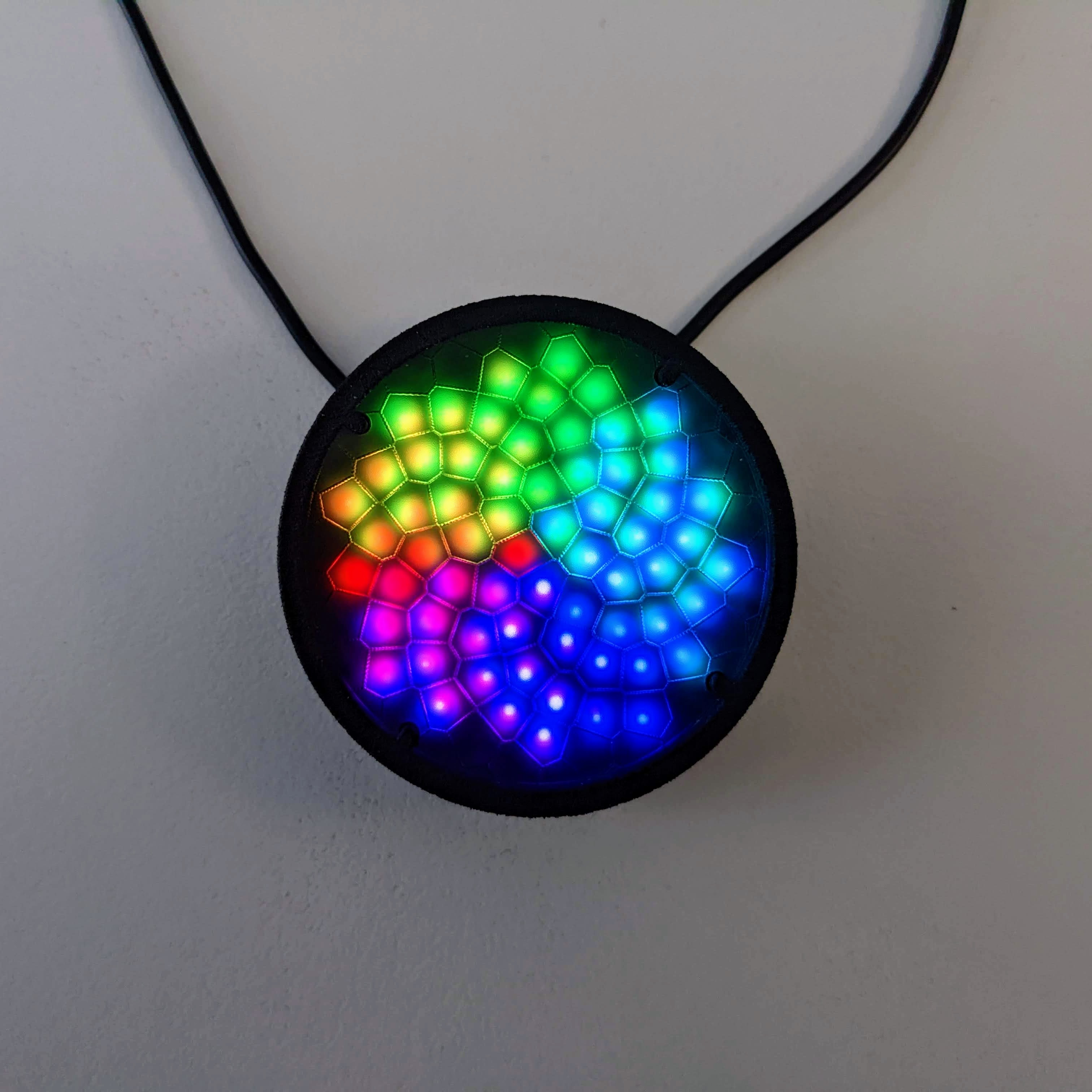

Let's move it to the center, by changing line 3 to offset it (like we did for the radius example):

radians = atan2(y - .5, x - .5)

Make it rotate by adding time on line 4:

h = degrees + time(.1)

Here's the complete code:

export function render2D(index, x, y) {
  radians = atan2(y - .5, x - .5)
  degrees = radians / PI / 2
  h = degrees + time(.1)
  hsv(h, 1, 1)
}

Note that this angular rainbow is different than where we started, using the pixels' index, which zig-zags back and forth, inward and outward, in one direction around the display. And with the pixels' angles, we can rotate the rainbow in any direction.

Next Steps

Congratulations! You made it to the end, through the trigonometry section!

Next steps:

Keep experimenting by changing the code above! You can't crash the Pixelblaze. The pixels will just temporarily stop updating, the editor will happily report any errors, and as soon as they're fixed the pixels will resume updating.
You can enter a name and click the save button to save your pattern at any point. Click the New Pattern button to keep the current one and start a new one.
Scroll down in the editor page and there's a full reference of everything the Pixelblaze supports.
Go to the Patterns page and click the Edit button to the right of every pattern to view the code for any of the patterns! Or use the Clone button to edit a copy of the pattern, leaving the current one unchanged.
If you get stuck, need help, or are unsure how to create the pattern of your dreams, reach out to us on Twitter: @LuxLavalier
Join the ElectroMage Forum where Pixelblaze users help each other with questions, share amazing patterns, and more!

Writing Your Own Patterns: Part 2

Let's pick up from where we left off in Part 1

The `beforeRender` Function

While the render and render2D functions are called once for each pixel, the beforeRender function is called once before each new frame of pixels is rendered to the strip. This is where we can prepare any data needed by all of the pixels once.

The delta argument is the number of elapsed milliseconds (with a resolution of 6.25ns!) since the last time beforeRender was called. You can use delta to create animations that run at the same speed regardless of the frame rate.

In the introduction, we used the time function to make patterns move. In Part 1, we just did this in render, once for each pixel. Now we know that we should move that to beforeRender, since it only needs to be updated once per frame not once per pixel:

export function beforeRender(delta) {
  t = time(.1)
}

export function render2D(index, x, y) {
  h = x + t
  hsv(h, 1, 1)
}

Value, Brightness, and Gamma Correction

So far all of the patterns we've created turn on all the pixels at full brightness. Let's add some variety.

Type (or copy and paste) the following code into the editor:

export function beforeRender(delta) {
  t = time(.1)
}

export function render2D(index, x, y) {
  v = x + t // scroll value horizontally
  v = v % 1 // wrap value from 1.0 to 0.0 (value does not wrap automatically)
  hsv(x, 1, v)
}

Note that we now have a static rainbow with a slightly dark line scrolling horizontally:

Value (v) is the amount of light energy. You might think that a value of 0.5 would be half as bright as 1.0, but humans actually perceive brightness on a power-law scale (search for "gamma correction" for more information). This means that our eyes perceive 0.25 as about half as bright as 1.0.

To make the value change more noticeable, let's square it.

Change the line to the following:

hsv(x, 1, v * v)

Notice the value change is more pronounced? We've squared the value. Value is between 0.0 and 1.0. So a value of 0.5, for example, when squared becomes 0.25. A value of 0.6 becomes 0.36, etc. Squaring the fractional values increases the contrast.

Try cubing the value:

hsv(x, 1, v * v * v)

and the contrast increases even more. Notice that the brightest part stays just as bright, and the darkest part just as dark, but the values in between become more gradual. That's because 1.0 cubed is still 1.0, and 0.0 cubed equals 0.0.

The final code:

export function beforeRender(delta) {
  t = time(.1)
}

export function render2D(index, x, y) {
  v = x + t // scroll value horizontally
  v = v % 1 // wrap value from 1.0 to 0.0 (value does not wrap automatically)
  v = v * v * v // increase contrast
  hsv(x, 1, v)
}

Waves

We've only been using the time function to add motion so far.

Let's explore some different waveforms and how to generate them.

Sawtooth Wave (Time)

The time function that we've been using creates a sawtooth wave between 0.0 and 1.0 that loops about every 65.536 * interval seconds (use 0.015 for approximately 1 second).

Let's use time to make a moving rainbow:

export function beforeRender(delta) {
  t = time(.1)
}

export function render2D(index, x, y) {
  h = x + t
  hsv(h, 1, 1)
}

We see it as a continuously scrolling rainbow, because the time wave wraps from 1.0 to 0.0, and red is at both ends of the rainbow (0.0 and 1.0).

Triangle Wave

The triangle function converts a sawtooth wave between 0.0 and 1.0, like that returned by the time function, to a triangle wave between 0.0 and 1.0. The value passed to triangle is automatically wrapped between 0.0 and 1.0.

Add the following line inside the beforeRender function:

w = triangle(t)

And then change the first line in render2D:

h = x + w

The complete code:

export function beforeRender(delta) {
  t = time(.1)
  w = triangle(t)
}

export function render2D(index, x, y) {
  h = x + w
  hsv(h, 1, 1)
}

Notice now instead of constantly scrolling in one direction, it now moves back and forth!

Sine Wave

The wave function converts a sawtooth wave between 0.0 and 1.0, like that returned by the time function, to a smooth sine wave between 0.0 and 1.0. The value passed to wave is automatically wrapped between 0.0 and 1.0.

Try changing line in beforeRender from triangle to wave:

w = wave(t)

The complete code:

export function beforeRender(delta) {
  t = time(.1)
  w = wave(t)
}

export function render2D(index, x, y) {
  h = x + w
  hsv(h, 1, 1)
}

Notice the wave moves back and forth more smoothly, slowing as it reaches the sides before reversing direction.

Polar Waves

Like in Part 1, we can switch from Cartesian XY coordinates to polar coordinates.

export function beforeRender(delta) {
  t = time(.1)
  w = wave(t)
}

export function render2D(index, x, y) {
  radius = hypot(x - .5, y - .5)
  h = radius + w
  v = 1
  hsv(h, 1, v)
}

Lets change it so the value moves but the hue doesn't:

export function beforeRender(delta) {
  t = time(.1)
}

export function render2D(index, x, y) {
  radius = hypot(x - .5, y - .5)
  w = wave(t + radius)
  h = radius * 2
  v = w
  hsv(h, 1, v * v * v)
}

Flip the direction:

w = wave(t - radius)

The complete code:

export function beforeRender(delta) {
  t = time(.1)
}

export function render2D(index, x, y) {
  radius = hypot(x - .5, y - .5)
  w = wave(t - radius)
  h = radius * 2
  v = w
  hsv(h, 1, v * v * v)
}

Perlin Noise

All of the above wave functions are symmetrical waveforms. Let's explore a random, asymmetrical, irregular waveform.

perlin(x, y, z, seed)

The perlin function generates random 3D dimensional Perlin noise waveform. Every integer value produces a different random result, with smooth transitions between them. It returns a value ranging from -1.0 to 1.0.

Try this code:

export function beforeRender(delta) {
  t = time(7) // very slow sawtooth wave, cycles every 458.752 seconds!
  noiseTime = t * 256 // noise inputs range from 0 to 255
  n = perlin(noiseTime, 0, 0, 0) // perlin returns values ranging from -1.0 to 1.0
  n = (n * 0.5) + 0.5 // adjust them to 0.0 to 1.0
}

export function render2D(index, x, y) {
  h = x - n
  hsv(h, 1, 1)
}

Notice the rainbow now moves in a much less regular, predictable way.

Perlin is different in another way from the other waveforms we've tried so far: it's a three-dimensional waveform! Lets use this to make a more interesting rainbow:

export function beforeRender(delta) {
  t = time(7)
  noiseTime = t * 256
}

export function render2D(index, x, y) {
  x2 = x + noiseTime
  y2 = y

  n = perlin(x2, y2, 0, 0) // perlin returns values ranging from -1.0 to 1.0
  n = (n * 0.5) + 0.5 // adjust them to 0.0 to 1.0
  h = n
  hsv(h, 1, 1)
}

We've mapped the three-dimensional Perlin noise waveform to the hues for each pixel, using the pixels' two dimensional XY coordinates!

We can swap XY for polar coordinates:

export function beforeRender(delta) {
  t = time(7)
  noiseTime = t * 256
}

export function render2D(index, x, y) {
  radius = hypot(x - .5, y - .5)

  radians = atan2(y - .5, x - .5)
  angle = radians / PI / 2

  x2 = angle + noiseTime
  y2 = radius * 2

  n = perlin(x2, y2, 0, 0) // perlin returns values ranging from -1.0 to 1.0
  n = (n * 0.5) + 0.5 // adjust them to 0.0 to 1.0
  h = n
  hsv(h, 1, 1)
}

Learning to Write Patterns

Table of Contents:

Part 1

Part 2

Writing Your Own Patterns: Part 1

The render Function

RGB Colors and the rgb function

HSV Colors and the hsv function

The index variable

The pixelCount variable

Animation

The time function

XY Mapping and the render2D function

Radius

Angle

Next Steps

Writing Your Own Patterns: Part 2

The beforeRender Function

Value, Brightness, and Gamma Correction

Waves

Sawtooth Wave (Time)

Triangle Wave

Sine Wave

Polar Waves

Perlin Noise

The `render` Function

RGB Colors and the `rgb` function

HSV Colors and the `hsv` function

The `index` variable

The `pixelCount` variable

The `time` function

XY Mapping and the `render2D` function

The `beforeRender` Function
